Use the installation guide above as a reference to remove your radio to install this product.
INTRODUCTION

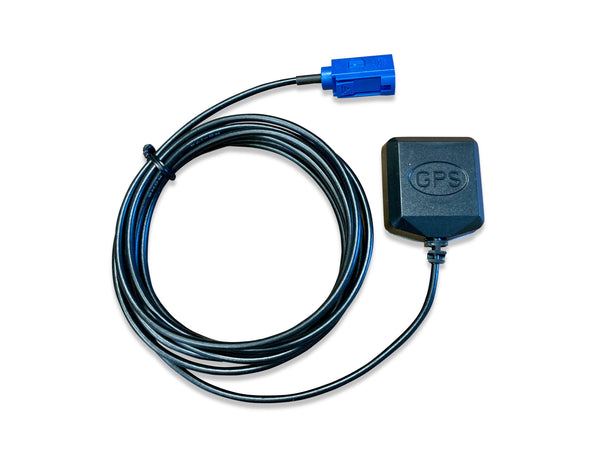

This antenna has the blue FAKRA connector and is designed to install anywhere behind your RER navigation radio just beneath your dash top (under your windshield) in clear sight of the sky. It can be mounted & secured with its magnetic base (against any metal object under dash top) or with double-sided tape. Once installed, drive the vehicle to calibrate the system and to link to GPS satellites. If your navigation radio has been programmed correctly, your location should populate automatically.
Make sure you're receiving at least 3 satellites after installation. Press NAV, MENU, NAV SETTINGS, GPS INFORMATION.
VEHICLE COMPATIBILITY
2008-2010 Chrysler Town & Country
2008-2010 Dodge Grand Caravan
2008-2010 Dodge Journey
2007-2010 Dodge Nitro
2009-2010 Dodge Ram 1500
2010 Dodge Ram 2500
2010 Dodge Ram 3500
2008-2010 Jeep Liberty
2007-2010 Jeep Wrangler
2008-2010 Chrysler 300
2008-2009 Chrysler Aspen
2007-2010 Chrysler Sebring
2007-2010 Dodge Avenger
2009-2010 Dodge Caliber
2008-2010 Dodge Challenger
2008-2010 Dodge Charger
2008-2010 Dodge Dakota
2008-2009 Dodge Durango
2008 Dodge Magnum
2008-2010 Jeep Commander
2009-2010 Jeep Compass
2008-2010 Jeep Grand Cherokee
2009-2010 Jeep Patriot
PRODUCT FEATURES
Electrical:
Center Frequency: 1575.42MHz ±3 MHz
VSWR (Voltage Standing Wave Ratio): 1.5:1
Band Width: ±5 MHz
Impedance: 50 ohm
Peak Gain: ＞3dBic Based on 7×7cm ground plane
Gain Coverage: ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization: RHCP Antenna
Amplifier:
LNA Gain (Without cable): 28dB Typical
Noise Figure: 1.5dB
Filter Out Band Attenuation:
f0=1575.42 MHZ
7dB Ｍin f0+/-20MHZ
20dB Ｍin f0+/-50MHZ
30dB Ｍin f0+/-100MHZ
VSWR (Voltage Standing Wave Ratio): ＜2.0
DC Voltage: 3V to 5V
DC Current: 5mA, 10mA Max
Mechanical:
Weight: ＜110 grams
Size: 48×39×14.1mm
Cable: RG174 2 meters in length
Connector: Blue FAKRA
Mounting: Magnetic base
Housing: Black Shell
Environmental:
Working Temperature: -40℃~ +85℃
Vibration: Sine Sweep 1g(0-p) 10~50~10Hz each axis
Humidity: 95%~100% RH
Weatherproof: 100%
