REC RB1 GPS Antenna

                REC Radio                             RB1 Radio

Use installation guide above as a reference to remove your radio to install this product.

INTRODUCTION

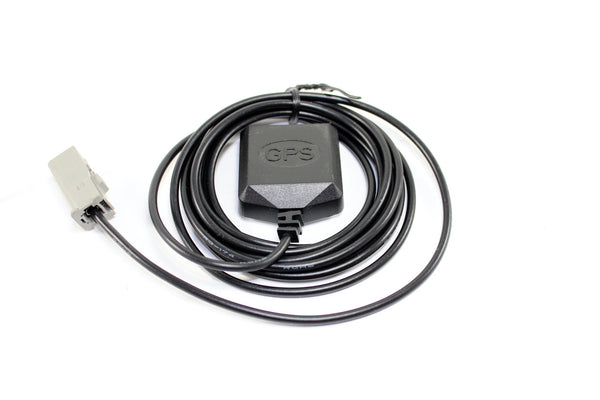

This antenna has a GT5 connector and is designed to install anywhere behind your REC or RB1 navigation radio just beneath your dash top (under your windshield) in clear sight of the sky. It can be mounted & secured with its magnetic base (against any metal object under dash top) or with double-sided tape. Once installed, drive the vehicle to calibrate the system and to link to GPS satellites. If your navigation radio has been programmed correctly, your location should populate automatically.

Make sure you're receiving at least 3 satellites after installation. Select NAV, Vehicle Information, then GPS Information.

VEHICLE COMPATIBILITY

2005-2007 Chrysler 300
2007 Chrysler Aspen
2007-2008 Dodge Caliber
2006-2007 Dodge Charger
2004-2007 Dodge Durango
2005-2007 Dodge Magnum
2006-2008 Dodge Ram 1500
2006-2009 Dodge Ram 2500
2006-2009 Dodge Ram 3500
2006-2007 Jeep Commander
2007-2008 Jeep Compass
2005-2007 Jeep Grand Cherokee
2007-2008 Jeep Patriot

PRODUCT FEATURES

Electrical:
Center Frequency:   1575.42MHz ±3 MHz
VSWR (Voltage Standing Wave Ratio):    1.5:1
Band Width:   ±5 MHz
Impedance:   50 ohm
Peak Gain:    ＞3dBic Based on 7×7cm ground plane
Gain Coverage:    ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization:    RHCP Antenna

Amplifier:
LNA Gain (Without cable):   28dB Typical
Noise Figure:    1.5dB
Filter Out Band Attenuation:
f0=1575.42 MHZ
7dB Ｍin f0+/-20MHZ
20dB Ｍin f0+/-50MHZ
30dB Ｍin f0+/-100MHZ
VSWR (Voltage Standing Wave Ratio):   ＜2.0
DC Voltage:   3V to 5V
DC Current:    5mA, 10mA Max

Mechanical:
Weight:    ＜110 grams
Size:    48×39×14.1mm
Cable:  RG174 2 meters in length
Connector:    Gray GT5 Male
Mounting:   Magnetic base
Housing:   Black Shell

Environmental:
Working Temperature:    -40℃~ +85℃
Vibration:   Sine Sweep 1g(0-p) 10~50~10Hz each axis
Humidity:    95%~100% RH
Weatherproof:    100%
