Sku: G-GPSB



INTRODUCTION

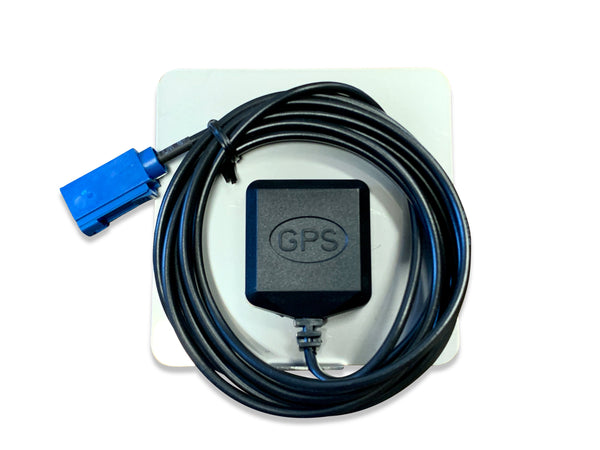

This antenna is designed to install anywhere behind your navigation radio just beneath your dash top (under your windshield) in clear sight of the sky. It can be mounted & secured with screws or double-sided tape. Once installed, drive the vehicle to calibrate the system and to link to GPS satellites. If your navigation radio has been programmed correctly, your location should populate after the vehicle is driven for a few minutes.

VEHICLE COMPATIBILITY

All GM vehicles with a navigation system/module featuring the blue colored FAKRA connector.

PRODUCT FEATURES

Electrical:
Center Frequency:   1575.42MHz ±3 MHz
VSWR (Voltage Standing Wave Ratio):    1.5:1
Band Width:   ±5 MHz
Impedance:   50 ohm
Peak Gain:    >3dBic Based on 7×7cm ground plane
Gain Coverage:    >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization:    RHCP Antenna

Amplifier:
LNA Gain (Without cable):   28dB Typical
Noise Figure:    1.5dB
Filter Out Band Attenuation:
f0=1575.42 MHZ
7dB Min f0+/-20MHZ
20dB Min f0+/-50MHZ
30dB Min f0+/-100MHZ
VSWR (Voltage Standing Wave Ratio):   <2.0
DC Voltage:   3V to 5V
DC Current:    5mA, 10mA Max

Mechanical:
Weight:    <110 grams
Size:    48×39×14.1mm
Cable:  RG174 2 meters in length
Connector:    Blue FAKRA Female
Mounting:   Magnetic base
Housing:   Black Shell

Environmental:
Working Temperature:    -40℃~ +85℃
Vibration:   Sine Sweep 1g(0-p) 10~50~10Hz each axis
Humidity:    95%~100% RH
Weatherproof:    100%
