Dual Antenna Multiplexer

$59.90

FREE
SHIPPING

100% MONEY
BACK GUARANTEE

ONLINE
SUPPORT 24/7

Sku: U-GPSMPLX + U-GPSB

Description
Reviews
Shipping & Delivery

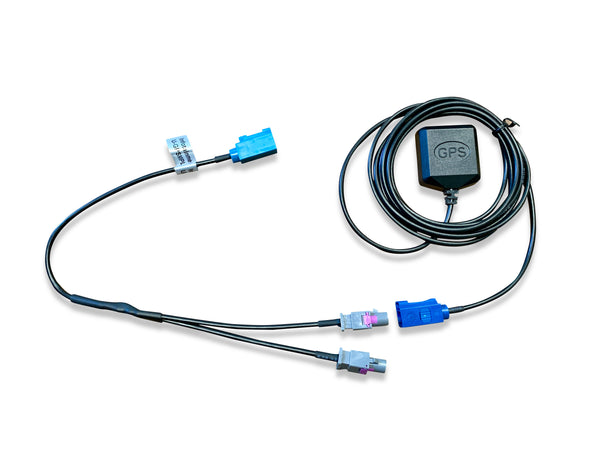

INTRODUCTION

This kit has been designed and offered only by Infotainment.com as an alternative to using a factory SiriusXM satellite radio antenna. This dual antenna option will receive both the satellite radio and GPS signals through two separate antennas on all 2011+ Chrysler/Dodge/Jeep/RAM vehicles. See installation procedure below.

If you do not have an existing SiriusXM antenna you can include our cost effective Magnetic Sirius Antenna above within the drop-down menu.

VEHICLE COMPATIBILITY

2011+ Chrysler / Dodge / Jeep / RAM vehicles. To be installed in conjunction with a factory GPS navigation radio.

Please let us know your vehicle's year/make/model upon checkout using our Compatibility Guarantee form. What's This?
If you don't see your vehicle listed, use our Year/Make/Model search located towards the top of your screen to find products tailored to your specific vehicle!

INSTALLATION

Refer to the diagram below for instructions without a SiriusXM satellite radio antenna.

Refer to the diagram below for instructions with a SiriusXM satellite radio antenna. CLICK HERE for additional help determining how and where to install your magnetic satellite radio antenna.

PRODUCT FEATURES

GPS Antenna Electrical:
Center Frequency:   1575.42MHz ±3 MHz
VSWR (Voltage Standing Wave Ratio):    1.5:1
Band Width:   ±5 MHz
Impedance:   50 ohm
Peak Gain:    ＞3dBic Based on 7×7cm ground plane
Gain Coverage:    ＞-4dBic at –90°＜0＜+90°(over 75% Volume)
Polarization:    RHCP Antenna

GPS Antenna Amplifier:
LNA Gain (Without cable):   28dB Typical
Noise Figure:    1.5dB
Filter Out Band Attenuation:
f0=1575.42 MHZ
7dB Ｍin f0+/-20MHZ
20dB Ｍin f0+/-50MHZ
30dB Ｍin f0+/-100MHZ
VSWR (Voltage Standing Wave Ratio):   ＜2.0
DC Voltage:   3V to 5V
DC Current:    5mA, 10mA Max

GPS Antenna Mechanical:
Weight:    ＜110 grams
Size:    48×39×14.1mm
Cable: RG174 2 meters in length
Connector:    Blue FAKRA
Mounting:   Magnetic base
Housing:   Black Shell

GPS Antenna Environmental:
Working Temperature:    -40℃~ +85℃
Vibration:   Sine Sweep 1g(0-p) 10~50~10Hz each axis
Humidity:    95%~100% RH
Weatherproof:    100%
