INTRODUCTION

Another 100% factory OEM Mopar plug & play Infotainment.com exclusive upgrade. No dealer programming required, simply use the included OBD Genie C-TBC programmer after installation to activate the feature!

Don't go aftermarket, easily add a 100% factory Ram plug & play electronic trailer brake controller to your Ram in less than 25 minutes! This integrated brake controller allows the driver to automatically or manually activate the electronic brakes on properly equipped trailers for greater stopping power on downhill grades. Drivers can customize the amount of brake force applied to the trailer brakes depending on the load, and independent of the truck's brakes.

VEHICLE COMPATIBILITY

2019-2022 Ram 1500 (New Body Style)
2019-2022 Ram 2500HD / 3500HD / 4500HD / 4500HD

* If you have the 2019+ Ram 1500 Classic body style CLICK HERE

Please let us know your vehicle's year/make/model upon checkout using our Compatibility Guarantee form. What's This?
If you don't see your vehicle listed, use our Year/Make/Model search located towards the top of your screen to find products tailored to your specific vehicle!

INSTALLATION

Installation of this product would be rated a 2 out of 5. 1 being extremely easy and 5 being extremely difficult. It is recommended prior to installing any automotive electronics that the negative battery terminal be disconnected.

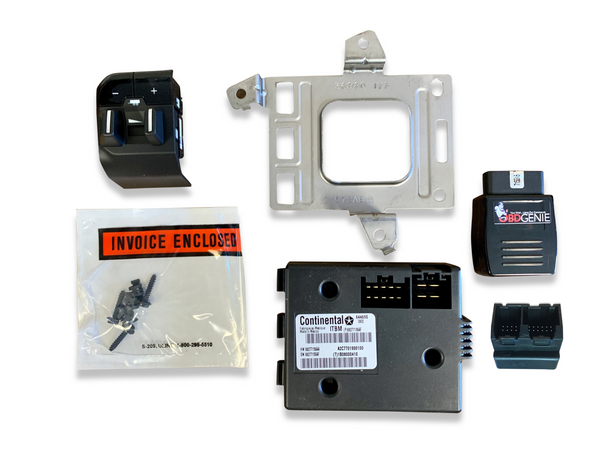

WHAT'S INCLUDED?

100% factory OEM Mopar kit
OBD Genie C-TBC Programmer - Programs the vehicle's BCM computer within 30 seconds to activate the feature.
C-MODBYP - Gateway module bypass

THINGS TO KNOW

Truck owners will need to temporarily install a gateway module bypass device prior to running the C-TBC programmer. The bypass can be removed as soon as the programming is complete. Ram 1500 owners will find their gateway module just above the OBDII connector behind the driver knee bolster. Ram Heavy Duty owners will find their gateway module directly behind the speedometer cluster.

2019-2022 Ram 1500 & Heavy Duty Truck Integrated Electronic Trailer Brake Controller
