Ford Sync 1 Truck Tailgate Logo Backup Camera Kit

INTRODUCTION

This 100% factory OEM Ford® tailgate logo camera with a high quality aftermarket camera has been brought to you exclusively by Infotainment.com to allow for a completely plug & play installation of a rear view camera for your factory radio display. Compatible with our backup camera pre-programmed Sync 1 factory navigation radios.

INCLUDE PROGRAMMER?

If you are purchasing or have purchased a Sync 1 GPS Navigation upgrade from Infotainment.com then you will not need a programmer. The system has been pre-programmed for backup camera use.

If you have not recently purchased an Infotainment.com radio upgrade and you would like to add a backup camera to your existing Sync 1 radio display then you will need to add the OBD Genie F-RVC programmer to your order by simply selecting the option above.

VEHICLE COMPATIBILITY

2009-2012 Ford F-150 (Refer to Pic 1A and 2A)
2009-2012 Ford SuperDuty F-250 - F-550 (Refer to Pic 1A and 2A)

2013-2014 Ford F-150 (*Refer to Pic 1A only)
2013-2016 Ford SuperDuty F-250-F-550 (*Refer to Pic 1A only)

• Please let us know your vehicle's year/make/model upon checkout using our Compatibility Guarantee form. What's This?
• If you don't see your vehicle listed, use our Year/Make/Model search located towards the top of your screen to find products tailored to your specific vehicle!

INSTALLATION

Remove and replace your tailgate handle. Route the camera wiring to behind the radio display. Interface the camera's yellow RCA video cable to the radio interface RCA. Tap camera's power/ground wires into the included U-INTEZDC kit which easily plugs behind the cigarette lighter. If you didn't purchase any sort of screen upgrade with Infotainment.com then simply purchase and run the F-RVC through your OBDII port. Done!

If you have any questions during the installation process please feel free to contact our customer support department.

PRODUCT FEATURES

Kit includes:

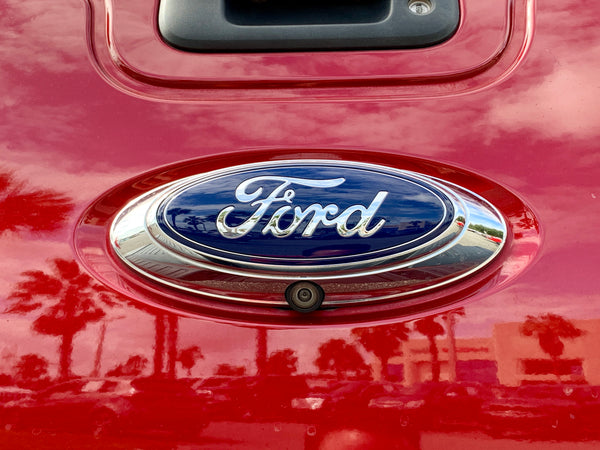

• Factory Ford tailgate nameplate/camera mount
• Factory Ford blue oval emblem
• Camera Source Super CMOS night vision camera pre-mounted - Latest camera technology
• OEM Ford mounting bolts and clip nuts for tailgate
• Universal sheet metal screws for trucks without clip nut openings
• 25' pre-loomed wiring harness with quick tailgate disconnect. This ensures your wiring is protected, all electrical connections can be made inside the cab to avoid corrosion, and the tailgate can be unplugged with ease!
• Wire connectors
• Zip ties
• Detailed installation instructions
• Infotainment.com U-INTEZDC for an easy method to connect power/ground.

Camera Specifications:

• Super CMOS chip - outstanding color, contrast, and clarity!
• 170 degree view
• 720x480 with over 600 TV lines of resolution
• .1 lux minimum illumination - Outstanding night vision!
• Factory Ford backup guidelines - (These are the red, yellow, green lines with the black centering line on the screen)
