2013-2018 Ram Truck Interior Auto Climate Control Kit

INTRODUCTION

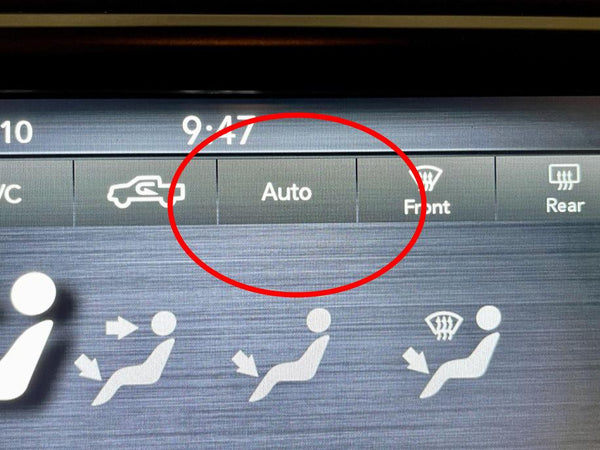

This Infotainment.com exclusive Ram truck interior cabin automatic climate control kit gives existing Infotainment.com customers the opportunity to set the desired temperature in their vehicle and the HVAC system will maintain that temperature automatically.

This kit is designed to be installed in conjunction with the Infotainment.com 7-inch UAG or 8.4-inch RA3 / RA4 / UAS / UAQ radio upgrades featuring the factory radio bezel kit.

COMPATIBILITY

2013-2018 Ram 1500 / 2500HD 3500HD 4500HD 5500HD
2019-2022 Ram 1500 Classic

• Please let us know your vehicle's year/make/model upon checkout using our Compatibility Guarantee form. What's This?
• If you do not see your vehicle listed, use our Year/Make/Model search located towards the top of your screen to find products tailored to your specific vehicle!

INSTALLATION

Installation of this product would be rated a 2 out of 5. 1 being extremely easy and 5 being extremely difficult.

• Plug the cabin temperature sensor wiring into the molex connector featured on the Infotainment.com HVAC module wiring. *If the existing HVAC module wiring features a blue wire (in Ram Heavy Duty) simply de-pin the wire and insert into the cabin temperature sensor wiring molex connector.

• Install the cabin temperature sensor into the driver-side knee bolster with the included (2) screws.

• Route the cabin temperature sensor wiring to the driver-side knee bolster and plug the 4-pin connector into the sensor.
• Remove the sun sensor located on the dash top and simply swap it with the included automatic climate sun sensor.
• Turn the truck to the ON position and insert the OBD Genie programmer into the OBD port located below the steering column. Once the green light appears on the programmer it is safe to remove and stow away. *Note* - if your Ram is a model year 2018 or higher you must first temporarily install the included security gateway module bypass behind the radio. Do so by disconnecting the two connectors that's installed in the security gateway module and plug them into the security gateway module bypass. Once the OBD Genie programmer is complete simply reinstall the two connectors into the security gateway module.

THINGS TO KNOW

• This kit is designed to be used only with the Infotainment.com 7-inch UAG and 8.4-inch RA3 / RA4 / UAS / UAQ radio upgrades. We have designed our factory radio bezel wiring to mate plug & play with this kit.
