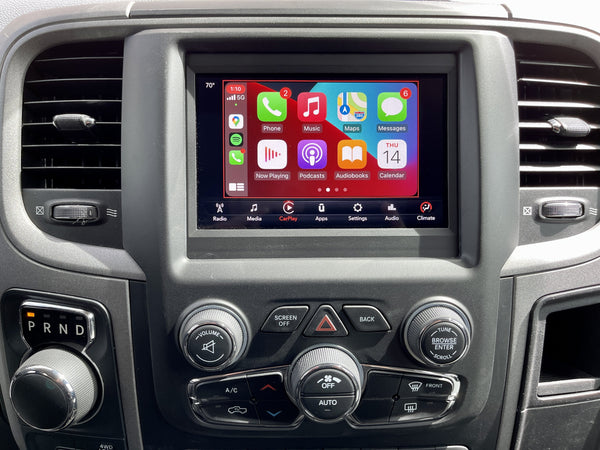

2013-2018 Ram Heavy Duty UConnect 4 UAG 7-inch Display with Apple CarPlay® & Android Auto®

INTRODUCTION

• Our reconditioned factory OEM radios feature a 90-day guarantee and a hassle-free return policy. Extended warranties are also available!

• Full Apple CarPlay® and Android Auto® support

• Supports English, French, & Spanish languages


• No-hassle, Plug & Play system. Pre-programmed to your specific vehicle. Please notate your vehicle's 17-digit VIN after adding to your cart. Eligible for our Compatibility Guarantee.What's This?

2013-2018 Ram 2500 / 3500 / 4500 / 5500 Heavy Duty
2013 Ram 1500

CLICK HERE if you own a 2014-2018 Ram 1500 or 2019-2022 Ram 1500 Classic truck

Ram Trucks currently equipped with steering wheel mounted audio controls and/or voice recognition & phone buttons will need to use the buttons located on the radio display and instrument panel bezel when upgrading to the UAG Infotainment system. See photo below.

• Please let us know your vehicle's year/make/model upon checkout using our Compatibility Guarantee form. What's This?
• If you don't see your vehicle listed, use our Year/Make/Model search located towards the top of your screen to find products tailored to your specific vehicle!

INSTALLATION

Installation of this product would be rated a 3 out of 5. 1 being extremely easy and 5 being extremely difficult. It is recommended prior to installing any automotive electronics that the negative battery terminal be disconnected.

Type 1 - In this scenario you have a factory installed 8.4-inch (RA3) or 8.4-inch (RA4) radio in your truck.

• Remove the instrument panel that surrounds your factory radio.
• Remove your factory installed 8.4-inch radio and install the included pre-programmed 7-inch UAG radio.
• Reassemble the instrument panel to the dash.
• Remove your USB media hub located within your armrest and install the included replacement USB media hub assembly.

Type 2 - In this scenario you have a factory installed base-model 3-inch (RA1) or 5-inch (RA2) radio in your truck.

• Remove the instrument panel that surrounds your factory radio.
• Remove your factory installed base-model radio and install the included pre-programmed 7-inch UAG radio.
• Install the HVAC module to the pre-determined location on the right side of the dash. Route the wiring to the climate control cavity.
• Install the resistor into the bottom of the HVAC blower. Connect the harness to the resistor and mate it to the HVAC module wiring.
• Remove and replace the factory radio bezel that is attached to the instrument panel. Plug the HVAC module wiring into the new bezel.
• Reassemble the instrument panel to the dash.
• Remove your USB media hub located within your armrest and install the included replacement USB media hub assembly.
• Turn the vehicle to the "ON" position and insert the OBD Genie programmer into the OBD port located under the steering column. When the light illuminates green remove the programmer and stow it away. *If the vehicle is a 2018 or newer, temporarily install the included security gateway module bypass behind the radio cavity prior to using the OBD Genie programmer*
