INTRODUCTION

Are you installing an aftermarket or factory GM navigation radio in your GM vehicle? Do you have the small backup camera image in your rear-view mirror? Then this kit is for you!

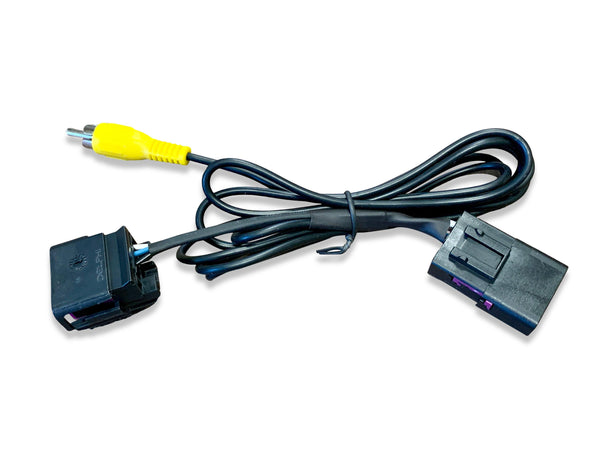

This adaptor will allow you to split the camera image in your rear-view mirror so when in reverse the image appears on your rear-view mirror and your newly installed radio at the same time.

VEHICLE COMPATIBILITY

2009+ GM trucks, SUVs, and sedans with the factory installed backup camera & factory installed backup camera rear-view mirror.

INSTALLATION

Full-Size Pickup Trucks

This adaptor plugs into a connector by your parking brake area and will stub out your factory camera wiring into a male RCA plug that will plug directly into the back of your newly installed aftermarket radio or G-INTVSS interface (which is included with all of our factory navigation radio upgrades).

SUVS

This adaptor plugs into a connector in the passenger side kick panel. The 4 pin male connector in the kick panel is extremely good at hiding behind other wires. However, if you have the white & blue wires in the mirror plug (pin 6 & 7), that connector will be there. You will unplug the two connectors, plug in the adapter harness, and route the adapter's video cable over to your newly installed aftermarket radio or G-INTVSS interface (which is included with all of our factory navigation radio upgrades).

THINGS TO KNOW

This kit will work with factory and aftermarket touchscreen radios. If installing an aftermarket radio the G-INTVSS interface will not be required as most aftermarket radios have a dedicated rear camera RCA input.
Per multiple requests, we designed the kit to retain the backup camera image on BOTH the rear view mirror and the newly installed radio display.

GM Truck & SUV Rear View Mirror Backup Camera Image Reroute Kit
