INTRODUCTION

Another Infotainment.com exclusive product! Do you own a 2019+ Ram truck with a front center jump seat? Upgrade today to the factory floor mounted center console. This wire harness is required to extend the center jump seat wiring to be connected to a factory center console.

VEHICLE COMPATIBILITY

2019-2022 Ram 1500

2019-2022 Ram 2500HD 3500HD 4500HD 5500HD Heavy Duty

Please let us know your vehicle's year/make/model & 17-digit VIN upon checkout using our Compatibility Guarantee form. What's This?
If you don't see your vehicle listed, use our Year/Make/Model search located towards the top of your screen to find products tailored to your specific vehicle!

WHAT'S INCLUDED?

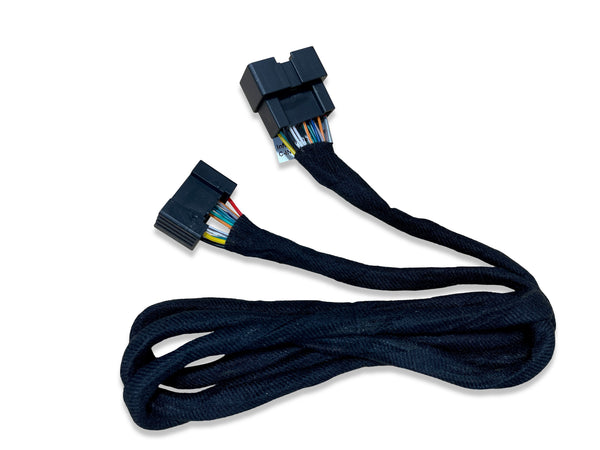

Custom Center Console Extension Cable

WHAT ELSE IS NEEDED?

In excess of our plug & play wiring, additional hardware will be required (not sold by Infotainment.com). The items below are subject to change and may not be compatible with each truck configuration. Please note - Infotainment.com representatives will not have any additional data to assist with installation.

2019+ RAM 1500 DT

Front of Console Lower Dash Bracket - 68291157AC
Front Bracket Nuts (Secures bracket to dash) - (2) Quantity 06511163AA
Rear of Console Floor Bracket - 68291165AA
Side Screws (Secures console to both brackets, 2 on each side) - (4) Quantity 06508182AA. Optional Screw Covers in Black (4) Quantity 5YM56TX7AA
Right Instrument Panel Closeout in Black 6MA64TX7AB
Left Instrument Panel Closeout in Black 6MA65TX7AB

2019+ RAM HEAVY DUTY

Front of Console Lower Dash Bracket - 68291157AC
Front Bracket Screws (Secures bracket to dash) - (2) Quantity 06505069AA
Rear of Console Floor Bracket - 68366628AA
Rear of Console Floor Bracket Bolts (Secures bracket to floor) - (2) Quantity 06104386AA
Side Screws (Secures console to both brackets, 2 on each side) - (4) Quantity 06508182AA. Optional Screw Covers in Black (4) Quantity 5YM56TX7AA
Right Instrument Panel Closeout in Black 6QB50TX7AA
Left Instrument Panel Closeout in Black 6QY39TX7AA

INSTALLATION

Installation of this product would be rated a 2 out of 5. 1 being extremely easy and 5 being extremely difficult. It is recommended prior to installing any automotive electronics that the negative battery terminal be disconnected.

If you need any assistance along the way please feel free to visit our YouTube page or contact our customer support department.

THINGS TO KNOW

Floor consoles can be purchased at various recycle yards by searching at www.car-part.com

2019-2022 Ram Truck Floor Mounted Center Console Wiring
